Gastight Syringe

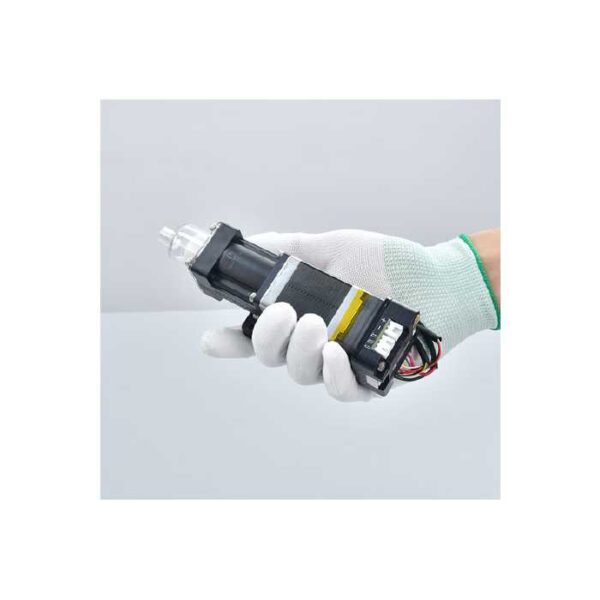

OEM Syringe Pump

OEM syringe pump usually is customized with 50ml or 100ml in higher capacity liquid handling of OEM systems. High accuracy and high repeatability make this electric syringe pump very popular for constant specific volume dispensing system, the programmable control system also make it more flexible in different applications and fields.

Order / Konsultasi

Description

Specification of OEM Syringe Pump

Volume 50ml, 100ml
Accuracy ≤1% @100% stroke
Repeat accuracy 0.3%– 0.7% @100% stroke
Pressure 0-1.0Mpa (air) 0-1.2Mpa (water)
Service life 3 million times no leakage (media: water)
Detection Photosensor check original piston position for accurate location
Actuator Ball screw (Lead 2mm)
Fluid path Borosilicate cylinder, PTFE piston, PTFE outlet
Max pressure Positive air pressure 0-1.0Mpa / Negative air pressure 0-0.05Mpa
Connection 1/4-28UNF
Communication RS232/RS485/CAN
Baud rate RS232/RS485: 9600dps, 19200dps, 38400dps, 57600dps, 115200dps

CAN: 100Kbps, 200Kbps, 500Kbps, 1Mbps
Device add. & Parameter setting Serial Pont
Dimension (L*W*H) Different model different dimension
Power supply DC24V/1.5A
Max Power 15W
Working temperature 5 – 55℃
Working humidity < 80% relative humidity, non-condensing
Delivery time About 20-25working days
