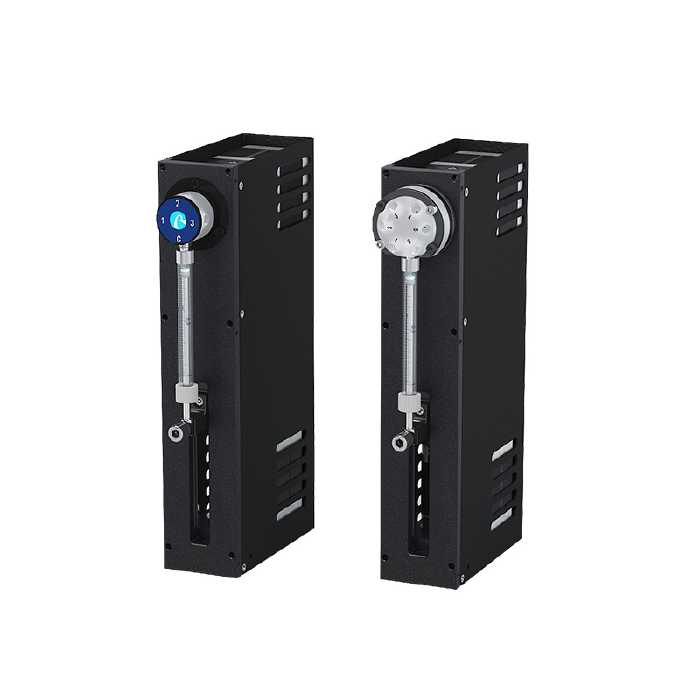

Syringe Pump SY-06B

Smart SY-06B syringe pump works for continuous liquid delivering from microliters to milliliters in very high accuracy. It is suitable for applications ranging from 50μl to 10ml to meet a variety of applications. Compared with other Runze’s syringe pumps, it is small in size and saves installation space.

Order / Konsultasi

Description

Description

Specification of Syringe Pump SY-06B

Valve Model	MO1、M02、M03、M04、M05、M06、M10、M12
Rated stroke (control steps)	60mm (6000 steps standard mode)
Linear speed	0.005mm/s～30mm/s
Running time (per rated stroke)	2s～12000s (media: water)
Resolution	0.01mm (per step)
Actuator	Trapezoidal screw (Lead 2mm)
Input signal	3 channels of TTL signal input
Connection	1/4-28UNF
Valve switching time	≤280 ms (between two adjacent ports)
Wetted material	Borosilicate glass, PCTFE, Sapphire, PTFE
Max. Pressure Rating	0.7 Mpa
Address &Parameter setting	Via communication
Communication interface	RS232/RS485/CAN
Baud rate	RS232/RS485: 9600bps, 19200bps, 38400bps, 57600bps, 115200bps CAN: 100Kbps, 200Kbps, 500Kbps, 1Mbps
